Project Overview

Peru’s high-altitude mines are punishing: thin air, abrasive rock dust, and constant heavy swings. The Komatsu PC300 needs a slewing ring that won’t quit. We supplied a large internal-gear ring that fits OEM specs and stands up to those long mining shifts.

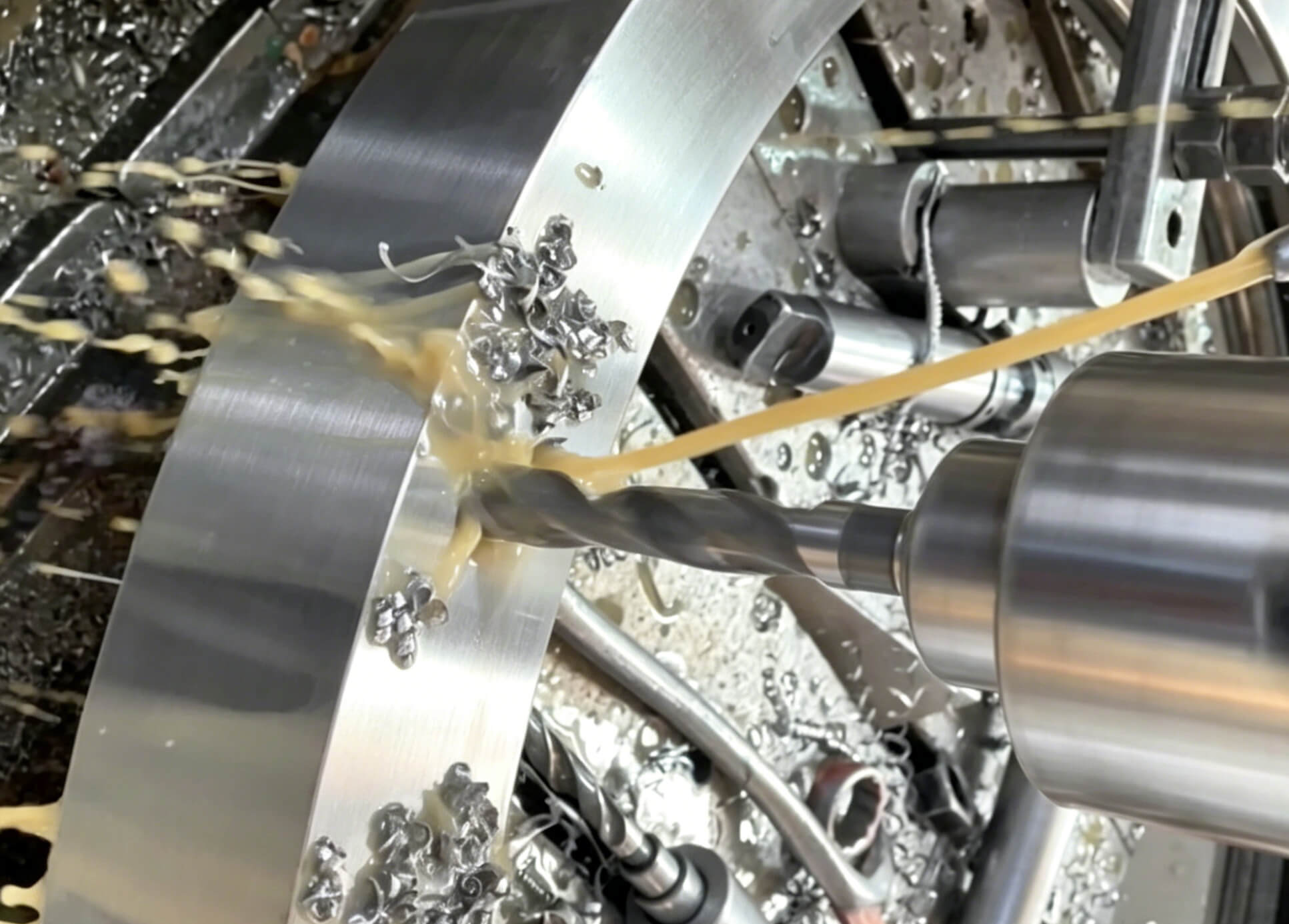

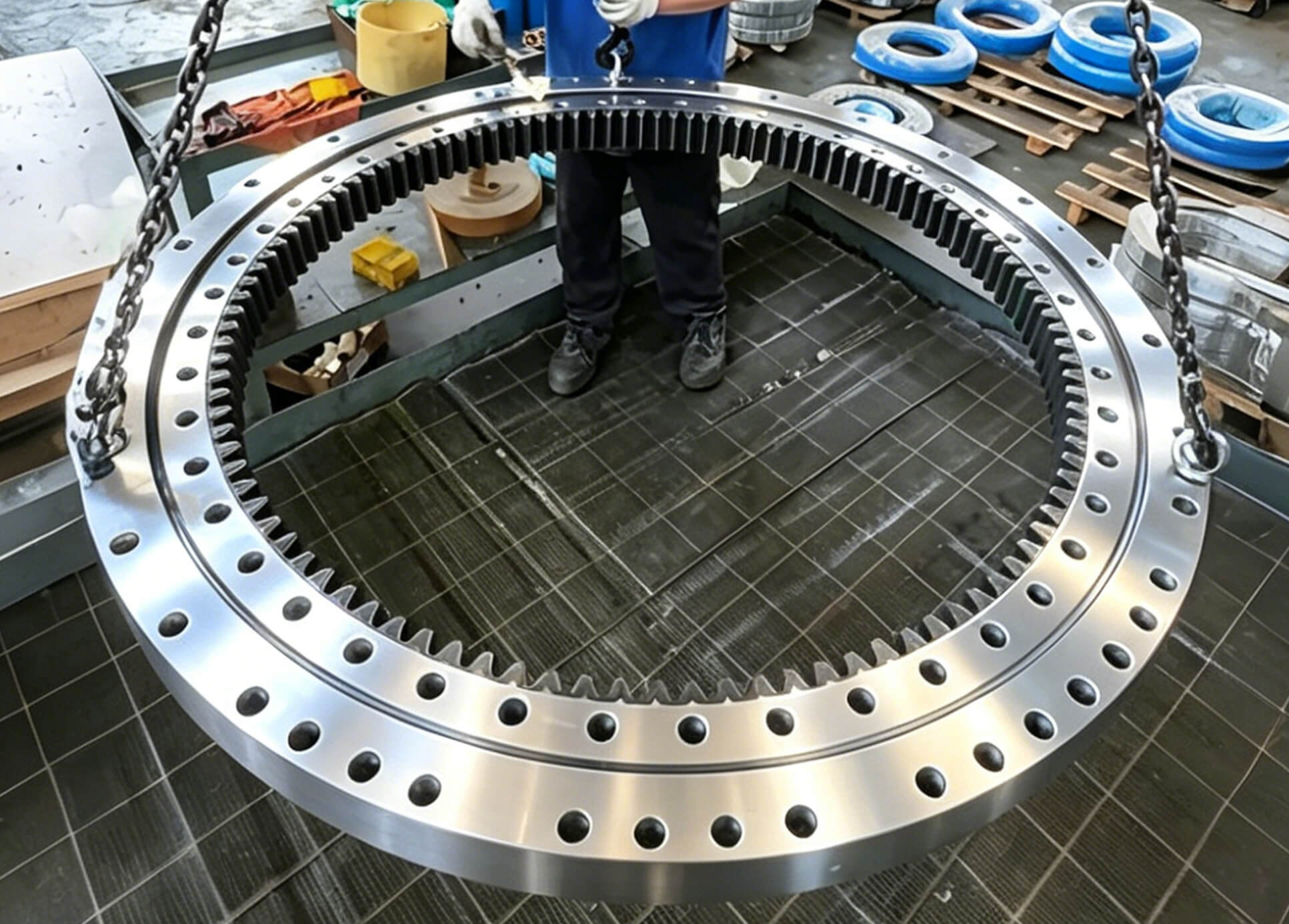

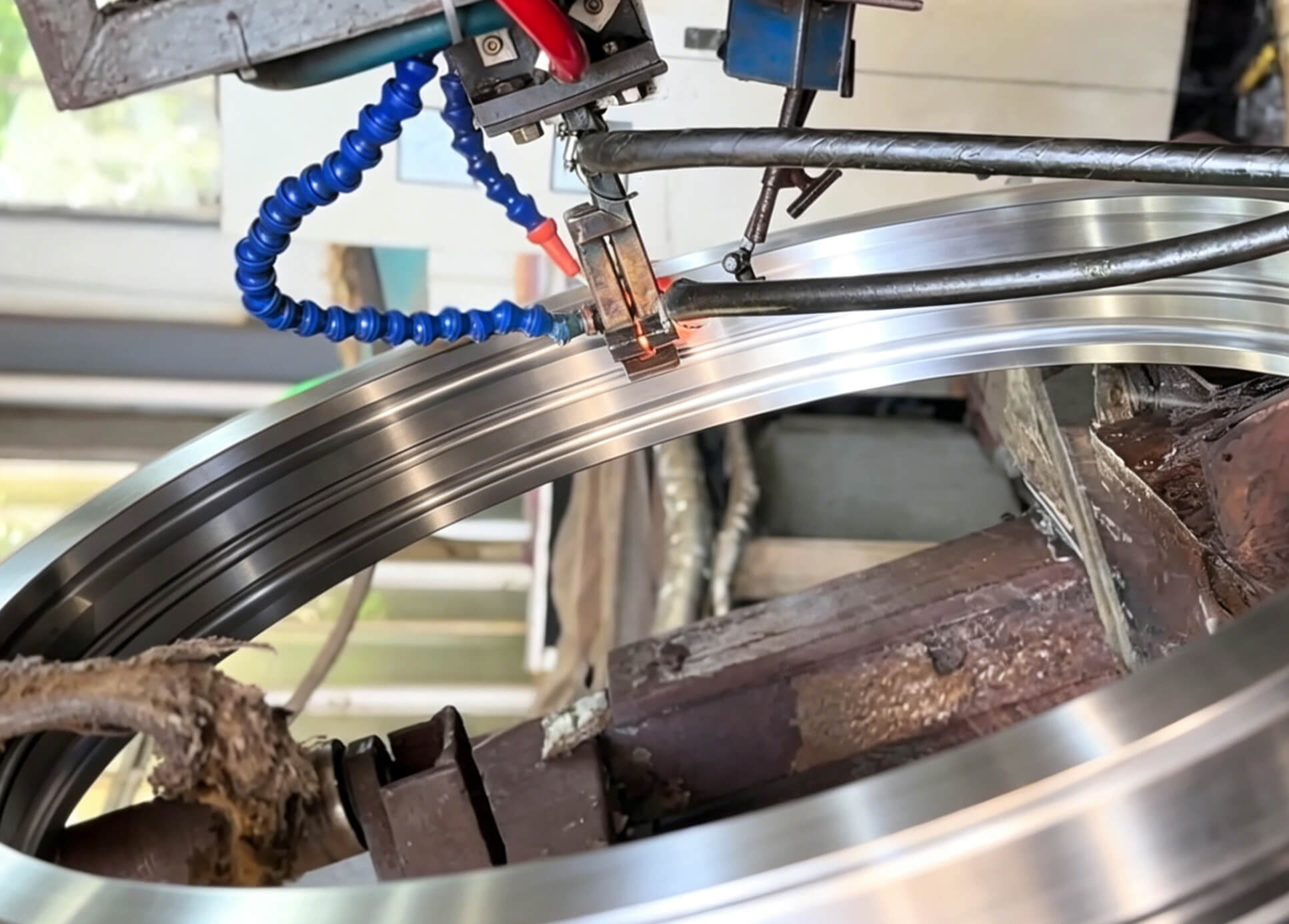

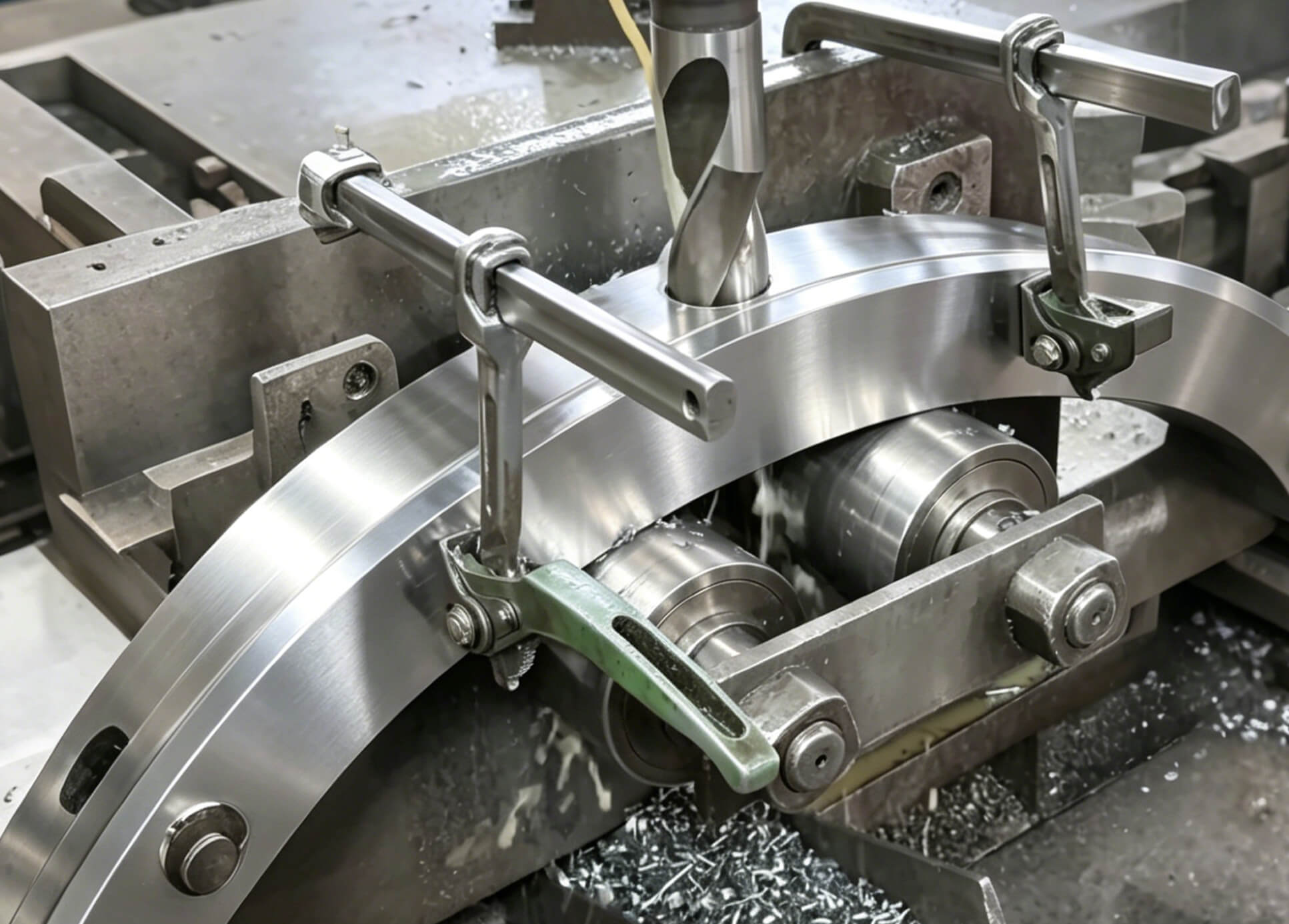

All 42CrMo steel. The inner raceway gets a professional quench to boost wear resistance, then we CNC-drill blocking and mounting holes. Strict surface cleaning removes every machining residue. Gear teeth are hardened to DIN Class 7 to withstand full-bucket impacts.

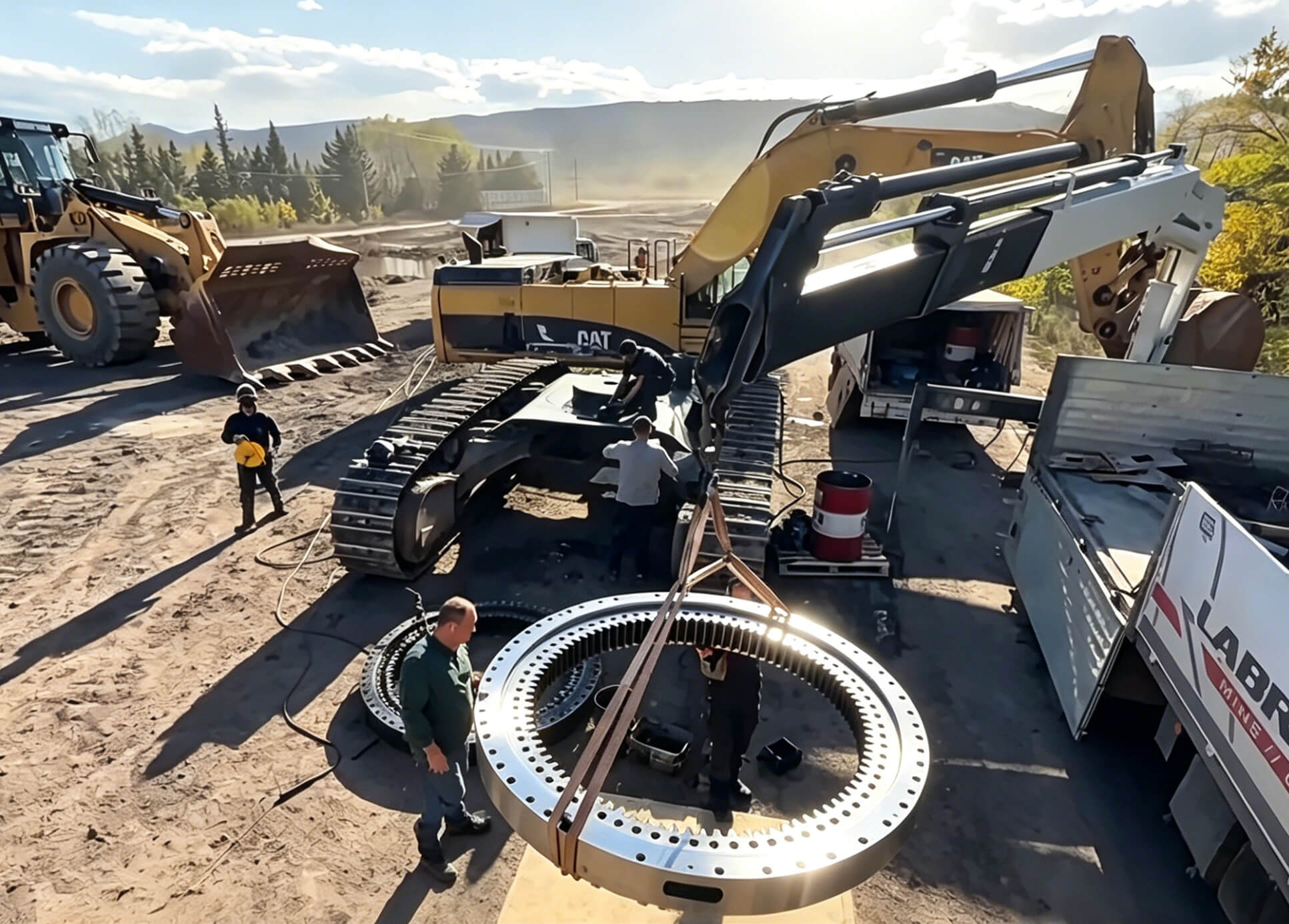

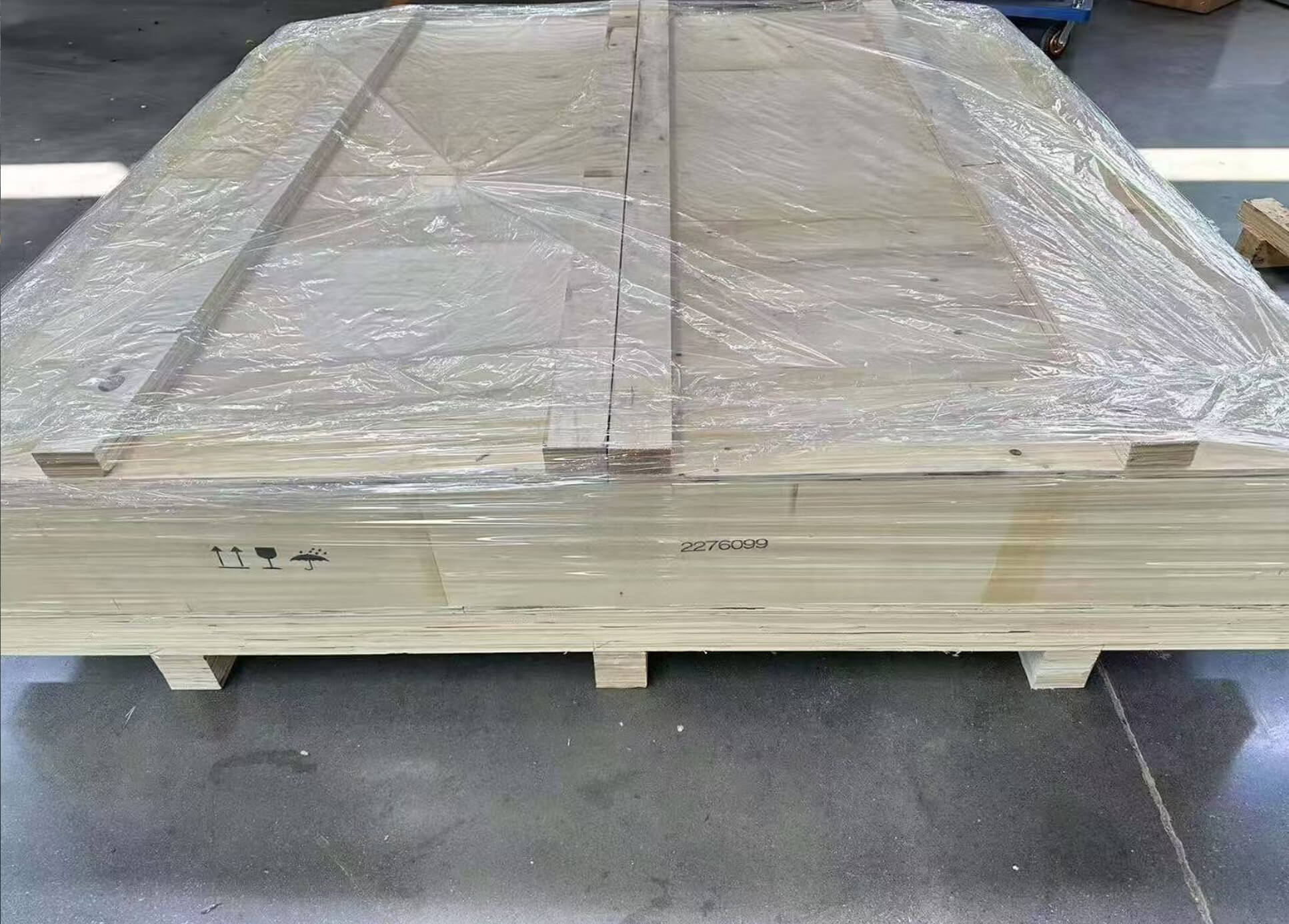

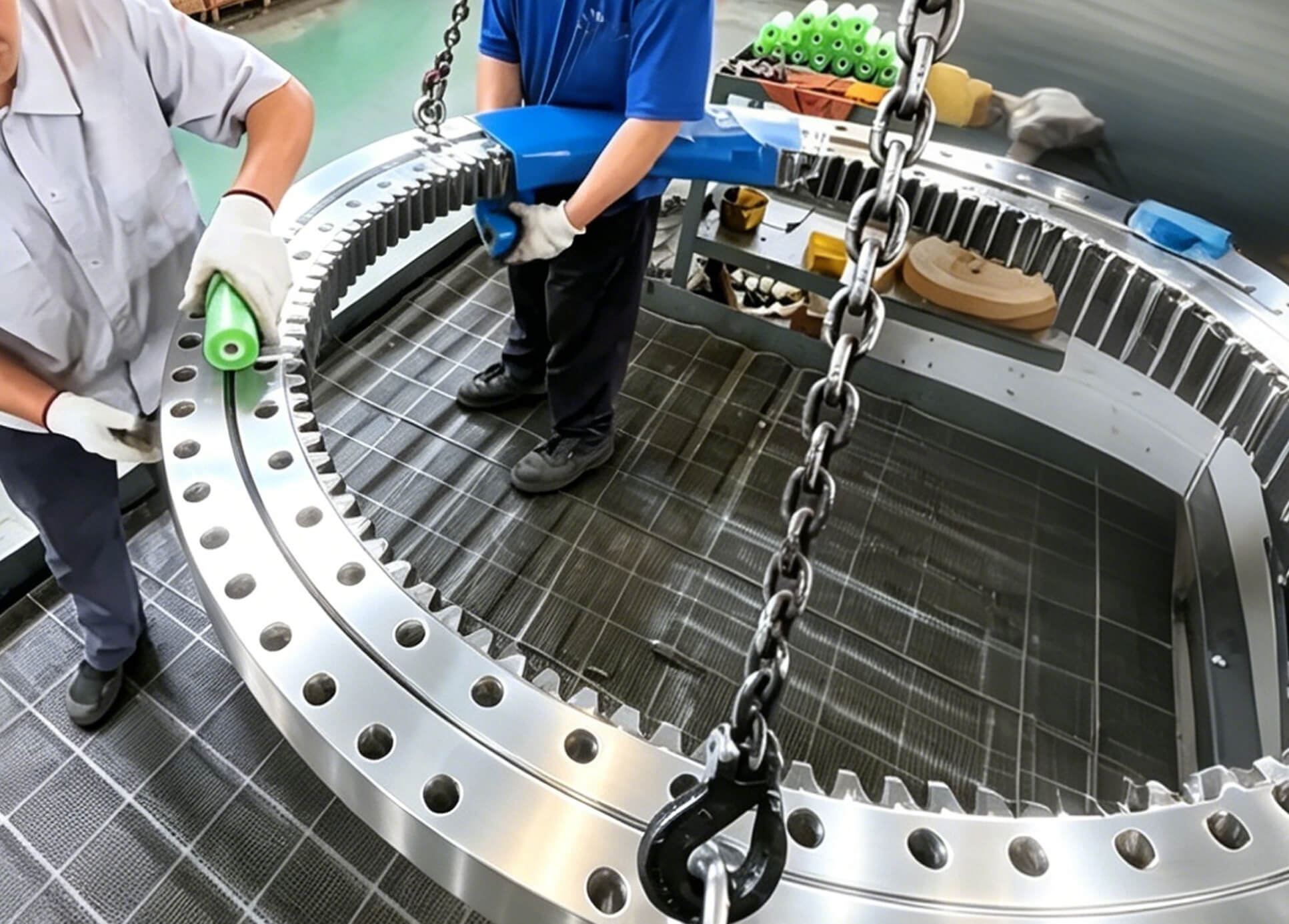

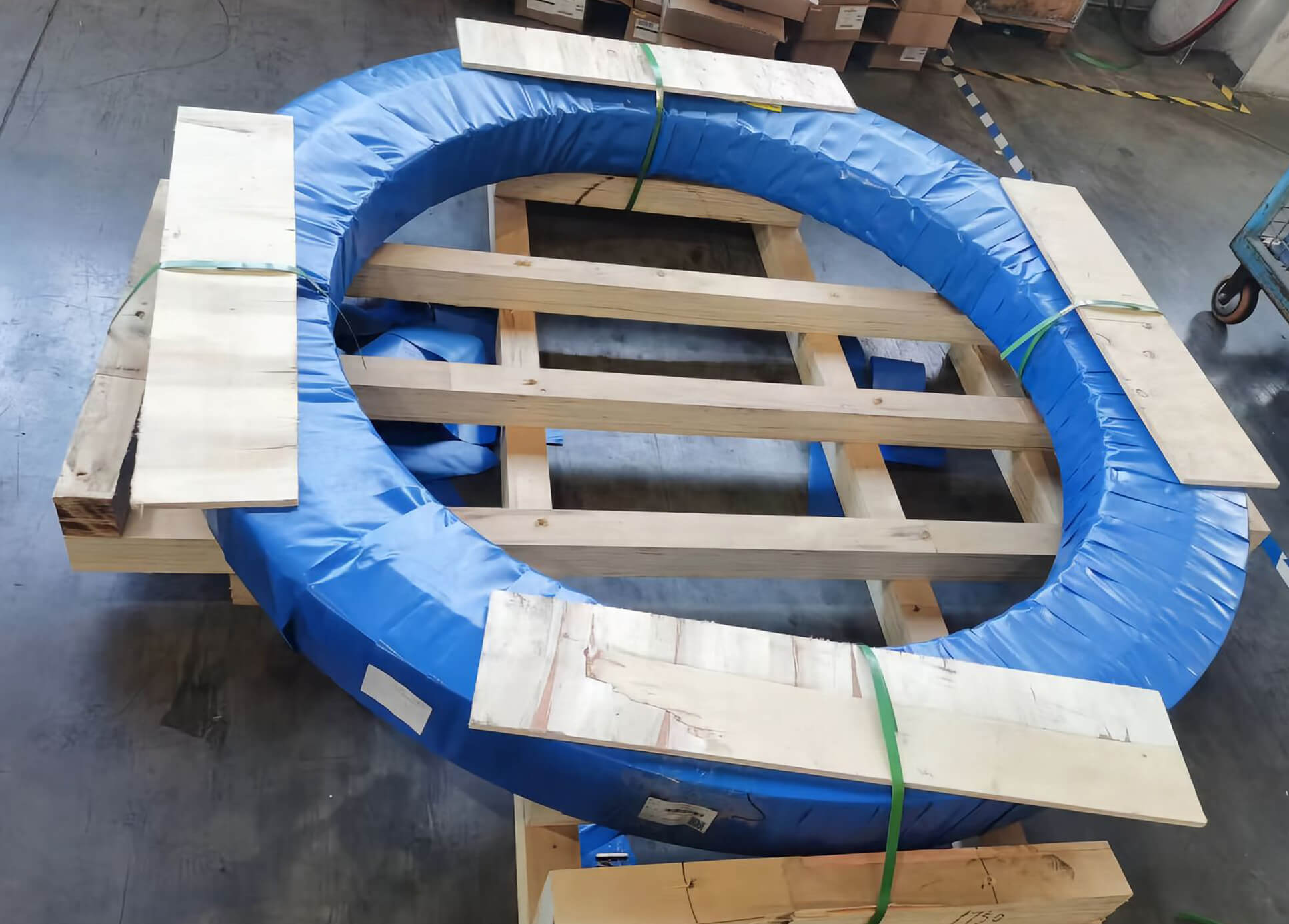

Our optimized grease passages and heavy-duty multi-layer sealing keep sharp mineral dust out – that’s what kills standard bearings. Each finished unit is inspected against confidential drawings, then waterproof-wrapped, palletized, and boxed in fumigated wood. We’ve got photo records from heat treatment to factory delivery and even on-site lifting. This ring is engineered for 2,000+ annual hours, giving Peru’s PC300 reliable rotation in those tough alpine conditions.

Technical Highlights

  • Custom triple-lip seal design to prevent dust and moisture ingress
  • Induction-hardened raceway: 55–58 HRC surface, 3.5 mm case depth
  • External gear profile: module m=6, Z=168, 20° pressure angle
  • Load capacity: 680 kN axial, 135 kNm overturning moment
  • Grease refill interval extended from 80h to 200h with polyurea-based high-temp grease
  • Pre-assembly ultrasonic inspection and 360° torque test before shipment

Project Gallery
