Project Overview

Brazil’s outdoor amusement parks are hot, humid, and rainy – and Ferris wheels run for long hours under alternating passenger loads. Safety and stability are non-negotiable. We engineered a heavy-duty external-gear slewing ring specifically for large Ferris wheels, meeting both OEM precision and local safety standards.

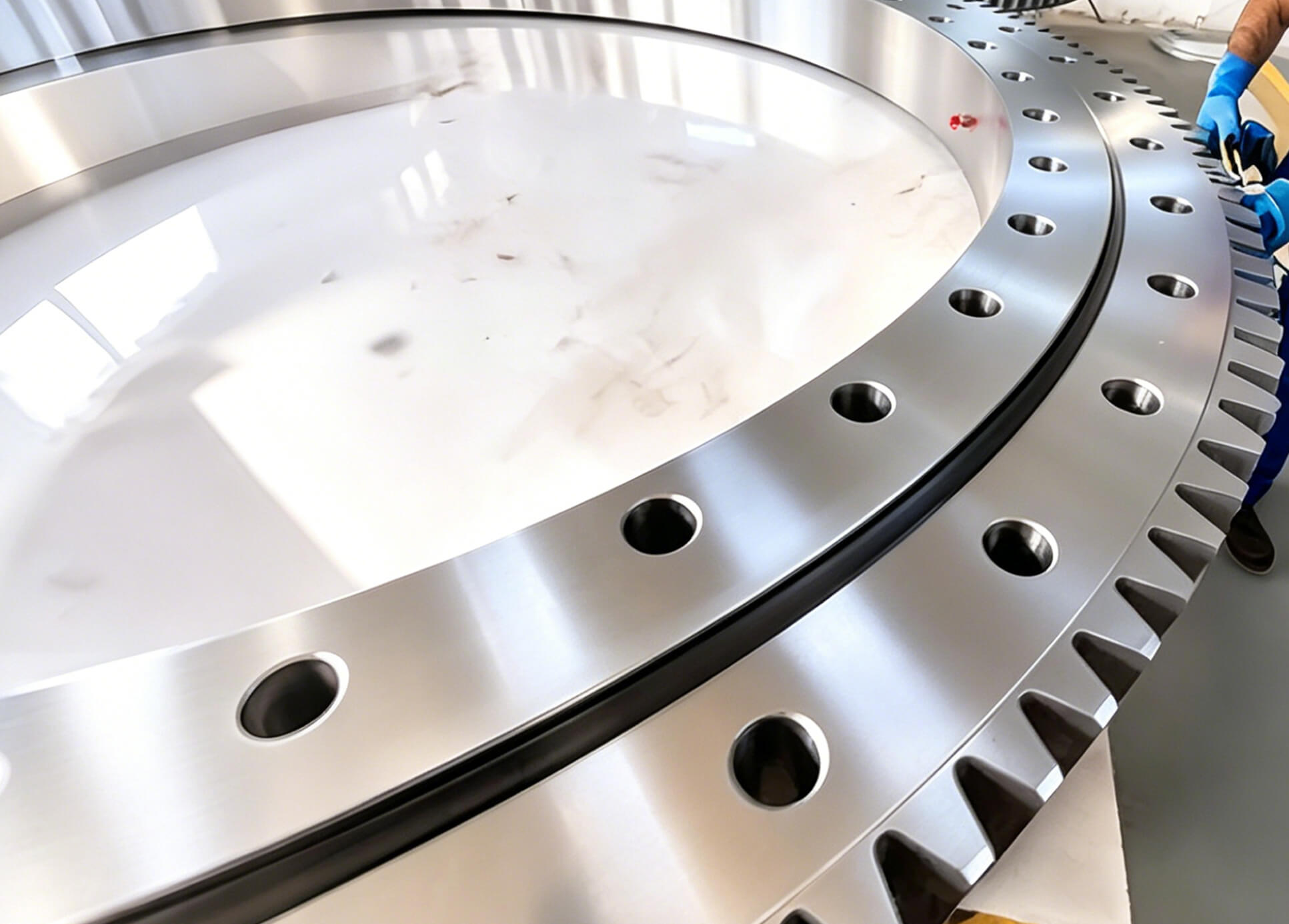

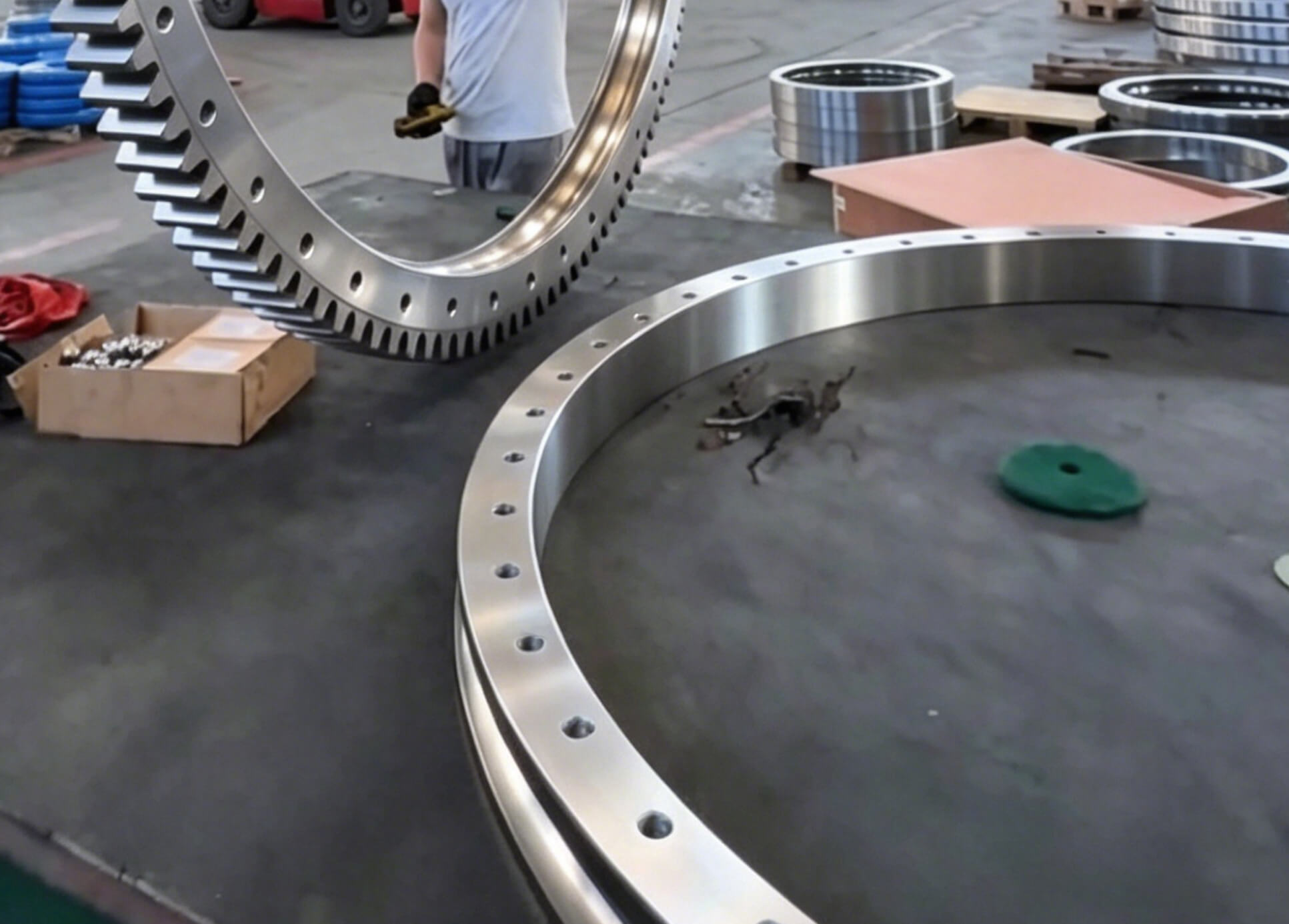

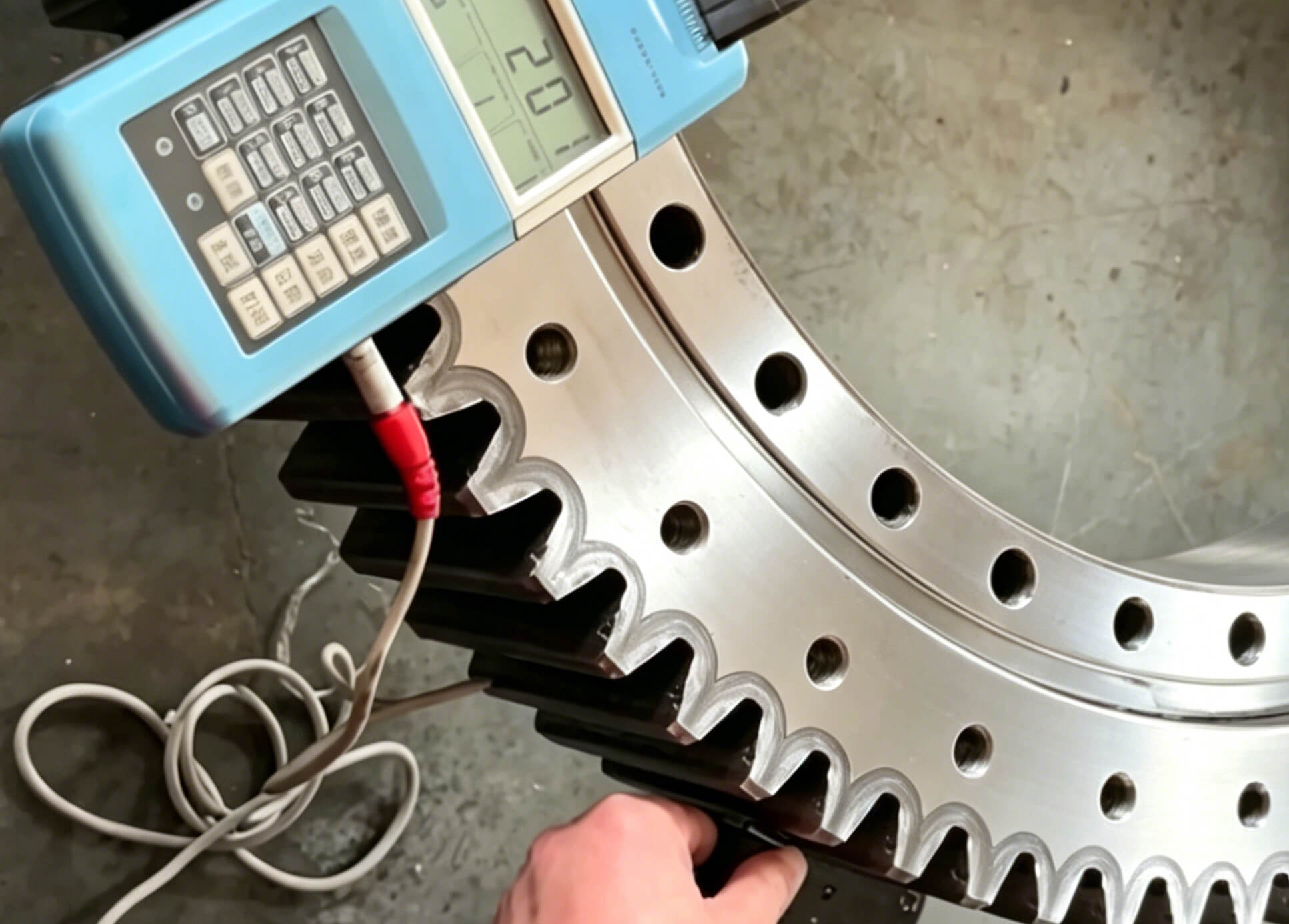

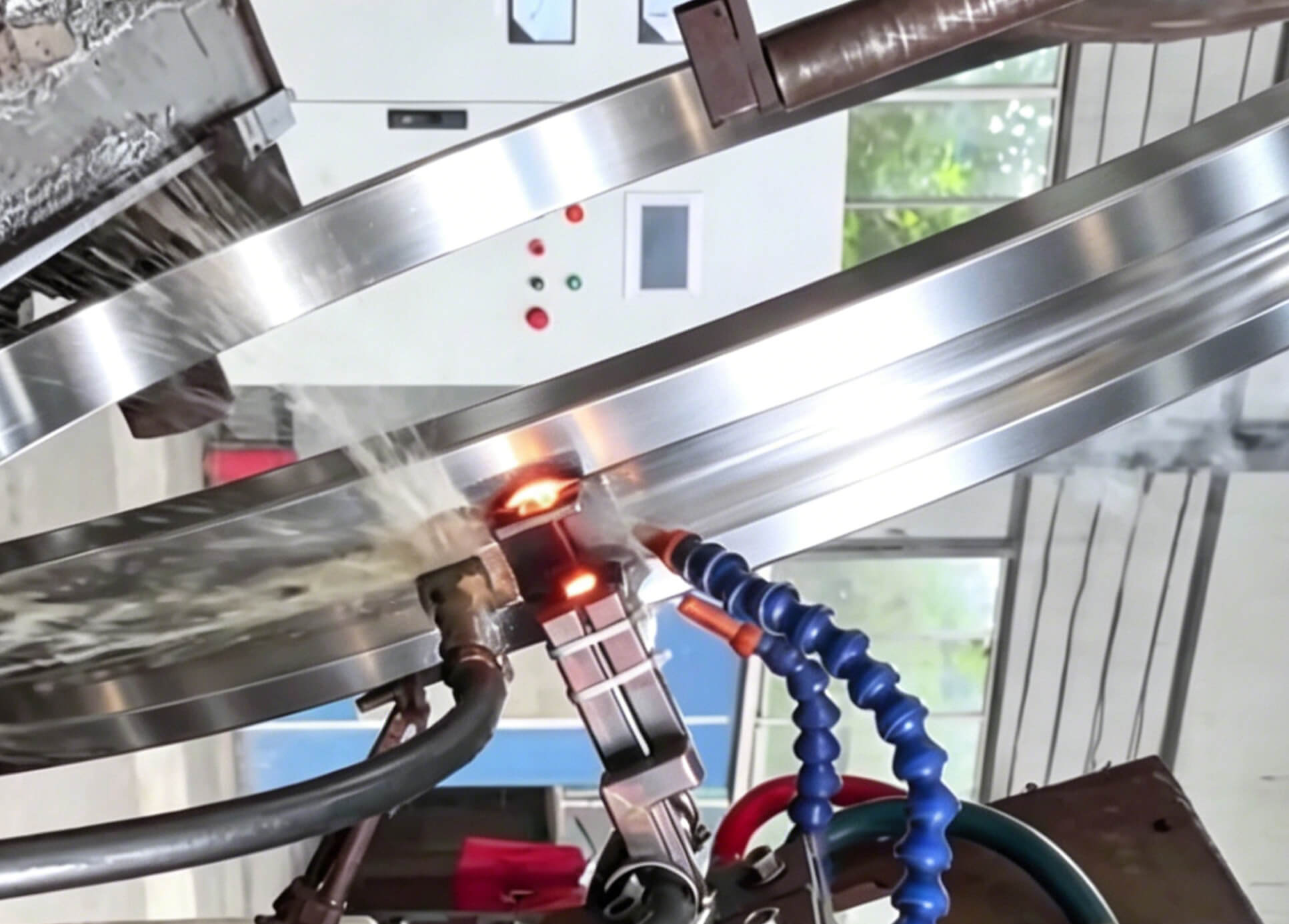

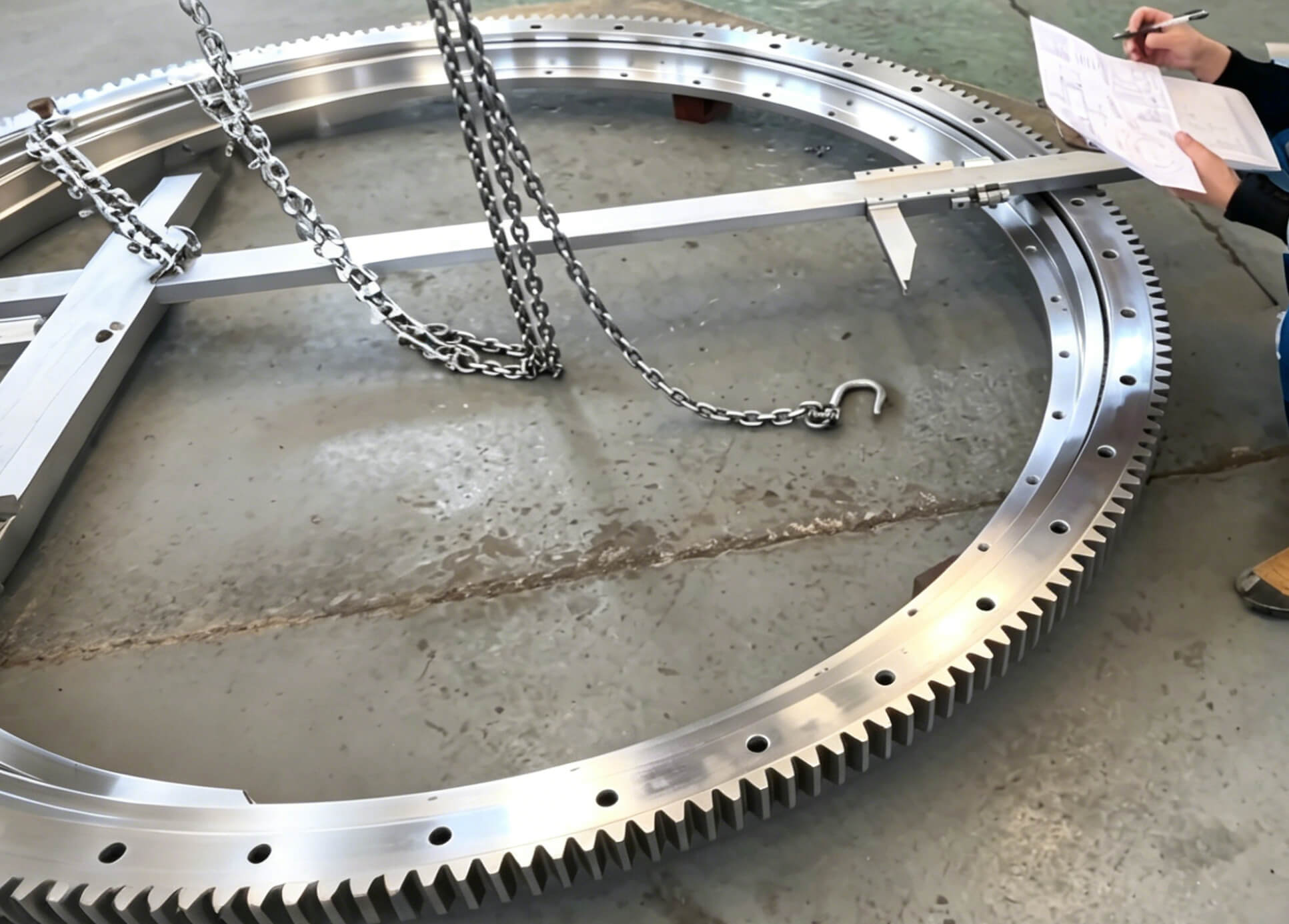

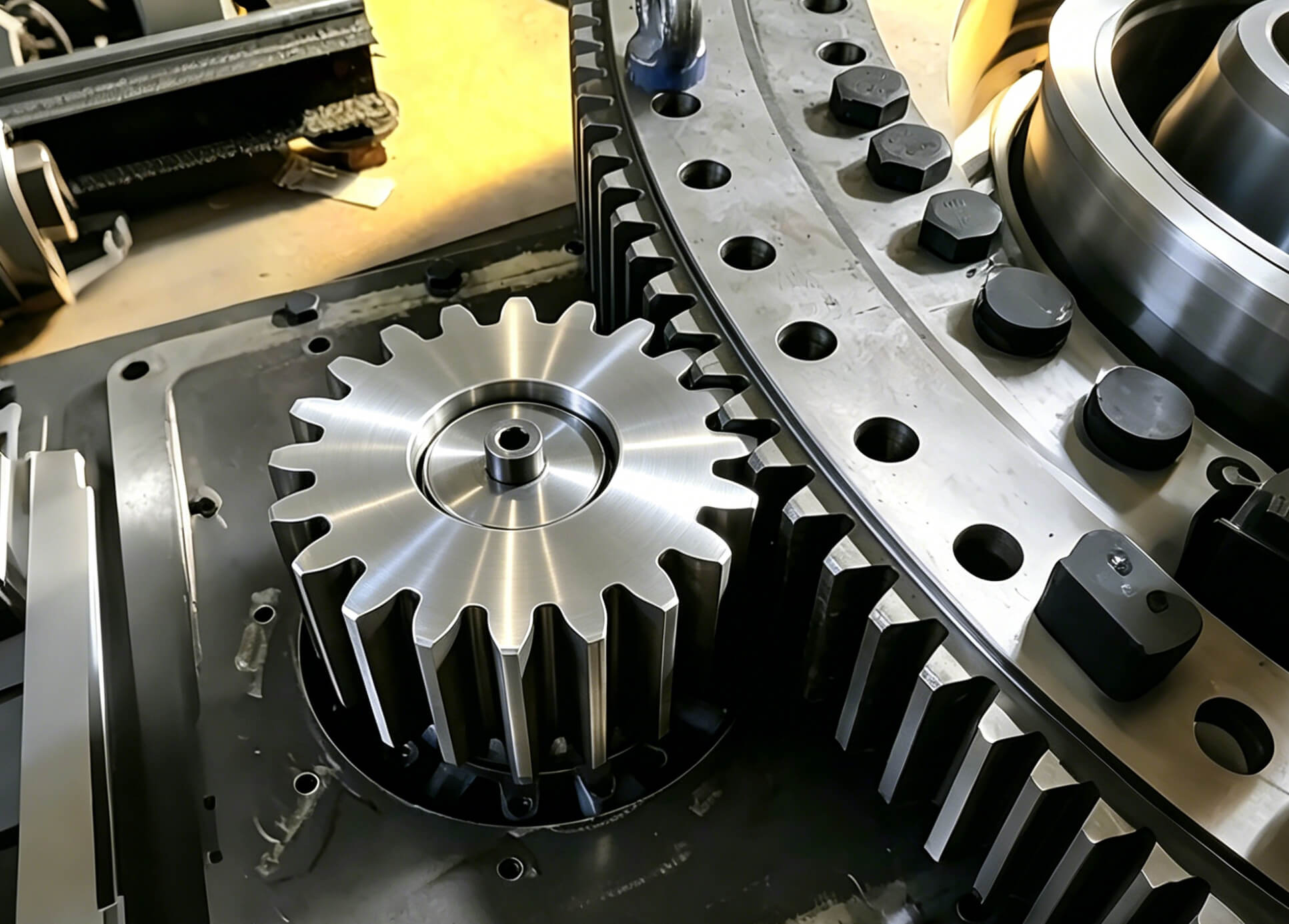

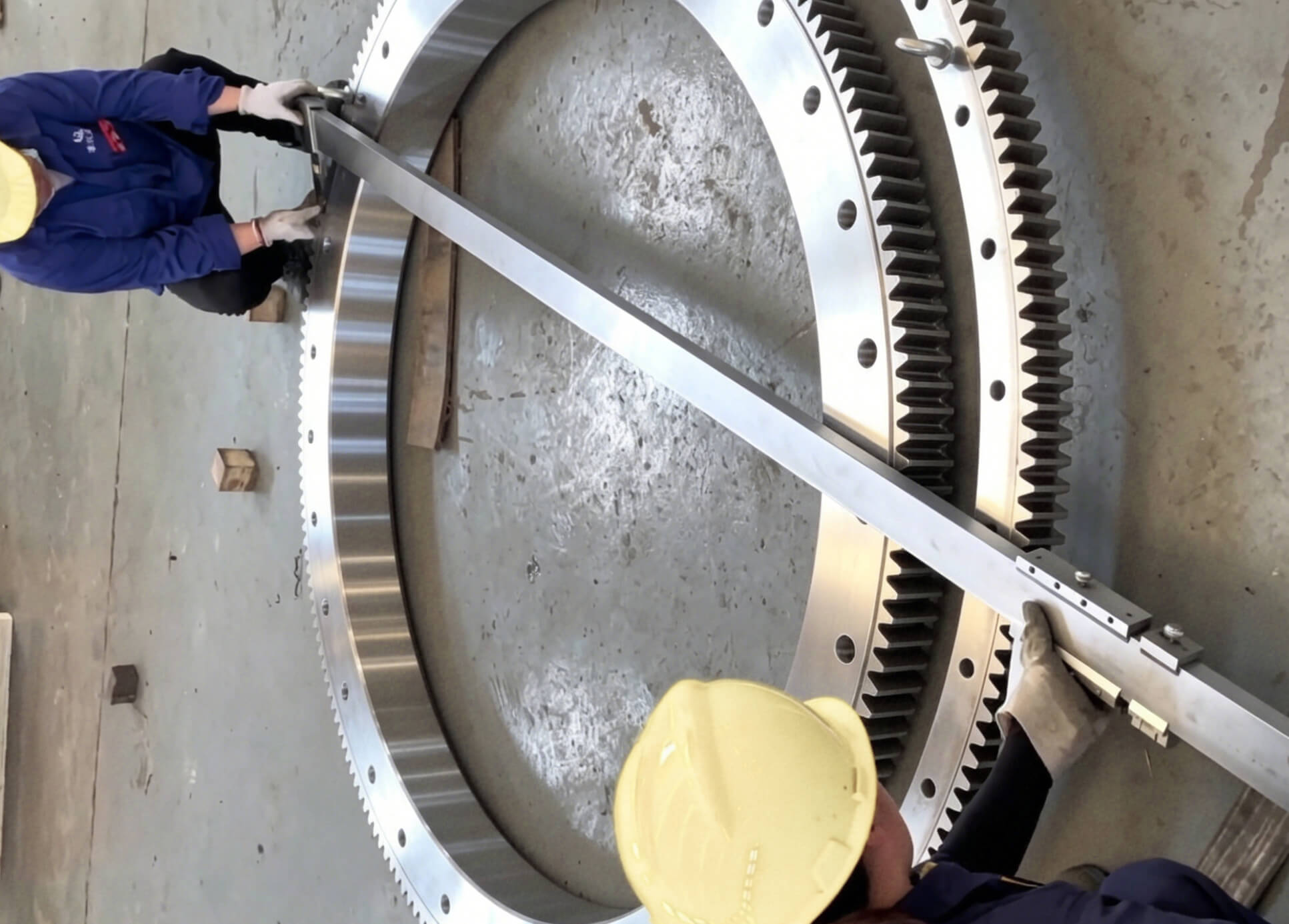

Made from 42CrMo steel, the inner raceway is integrally quenched and hardness-tested for long-term load capacity. We clean every surface, measure dimensions, and inspect the outer ring fully before assembly. Then we run gear meshing tests to fine-tune clearance, ensuring smooth, quiet rotation with no jitter.

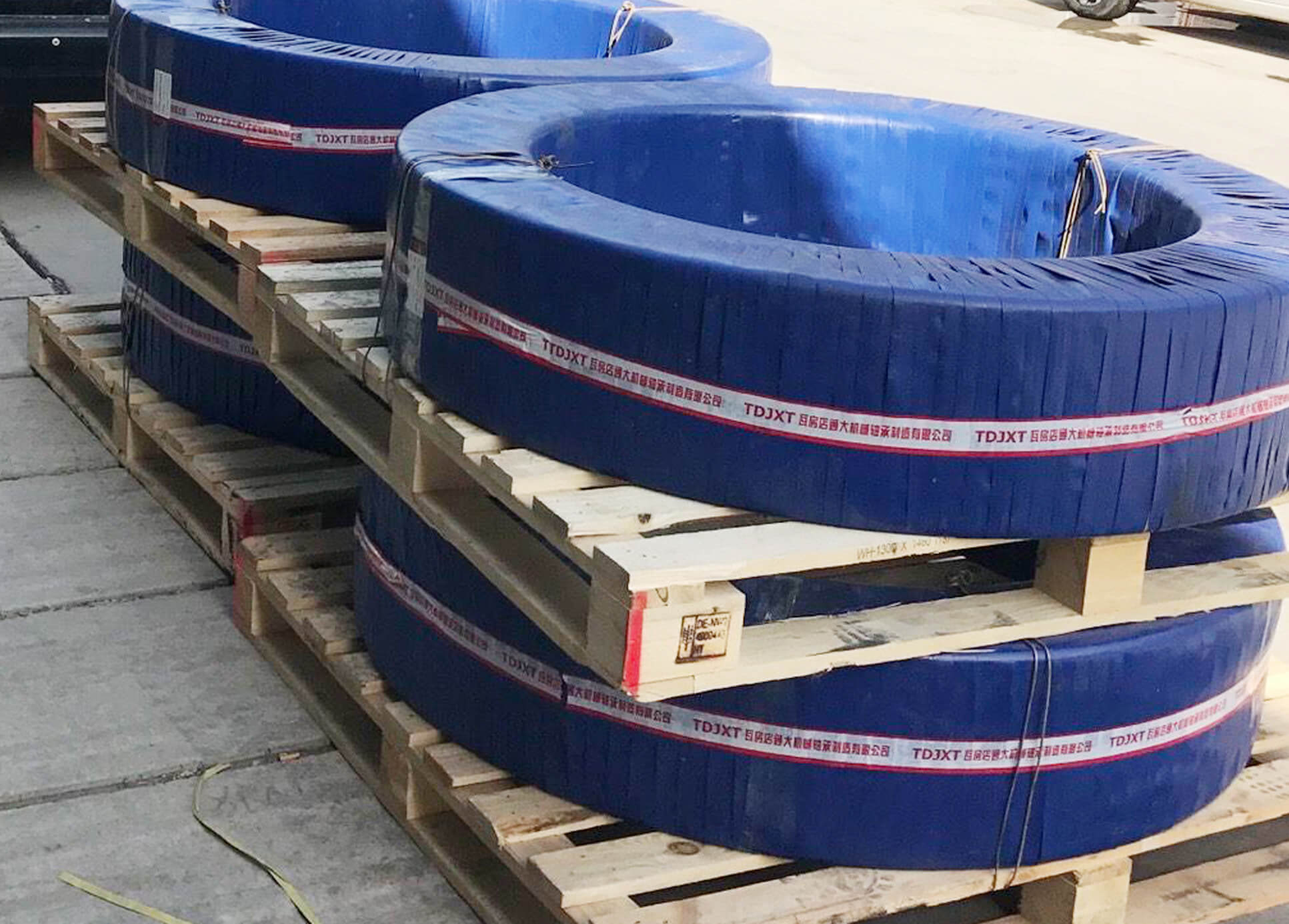

Our multi-layer dust and waterproof sealing, plus optimized grease passages, keep moisture and grit away from internal parts. The whole process – from machining to final test – is captured in photos. All indicators are checked against confidential drawings before wooden case packing and container shipping. Designed for year-round operation, this large external slewing ring provides the safe, reliable support that Brazilian Ferris wheels need.

Technical Highlights

  • Custom triple-lip seal design to prevent dust and moisture ingress
  • Induction-hardened raceway: 55–58 HRC surface, 3.5 mm case depth
  • External gear profile: module m=6, Z=168, 20° pressure angle
  • Load capacity: 680 kN axial, 135 kNm overturning moment
  • Grease refill interval extended from 80h to 200h with polyurea-based high-temp grease
  • Pre-assembly ultrasonic inspection and 360° torque test before shipment

Project Gallery
