Project Overview

Kazakhstan’s outdoor amusement facilities face big temperature swings, dry dust, and long-duration alternating passenger loads. For Ferris wheel slewing bearings, we built a heavy-duty external-gear ring compatible with Kato NK400 equipment to ensure safe, stable rotation.

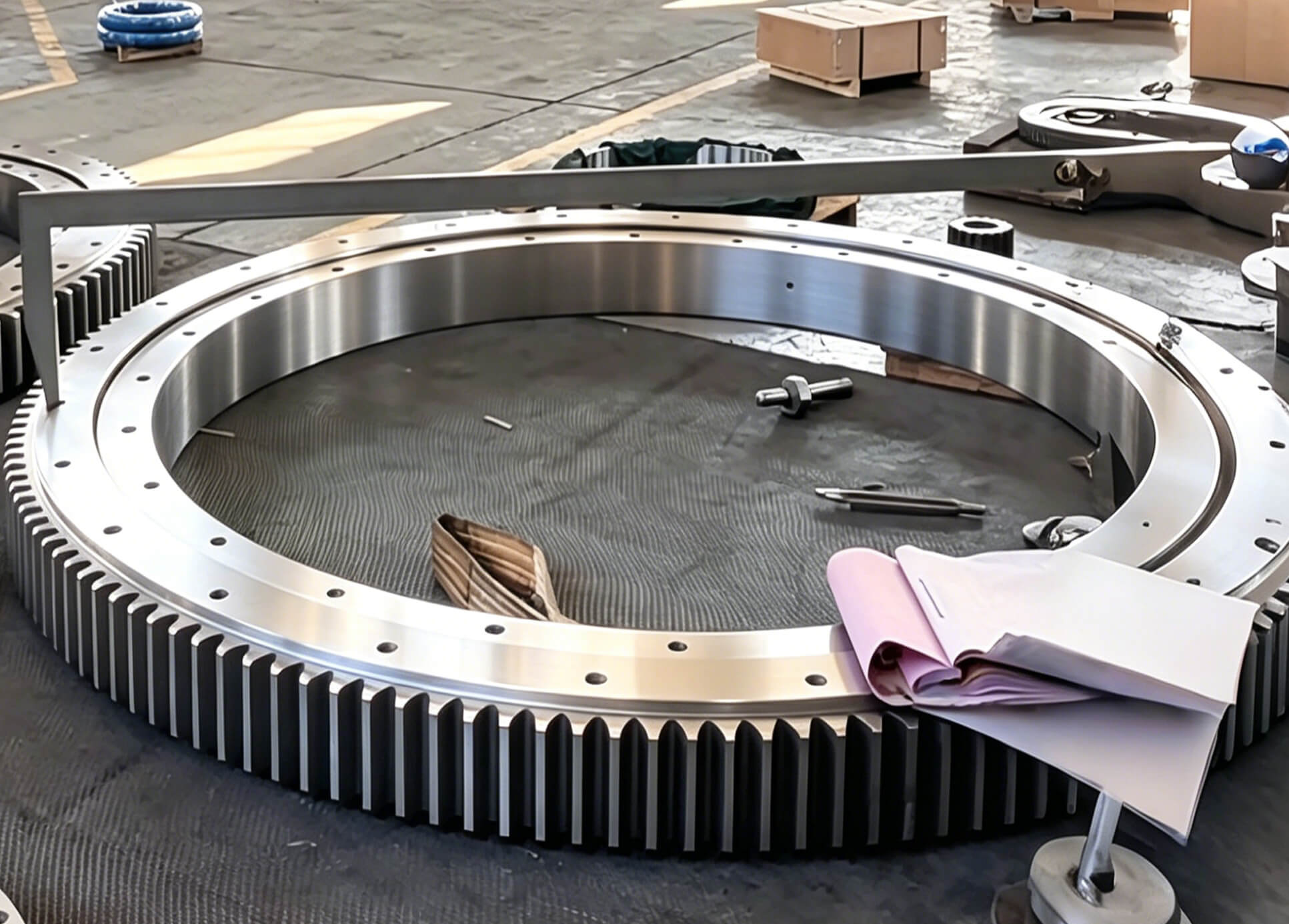

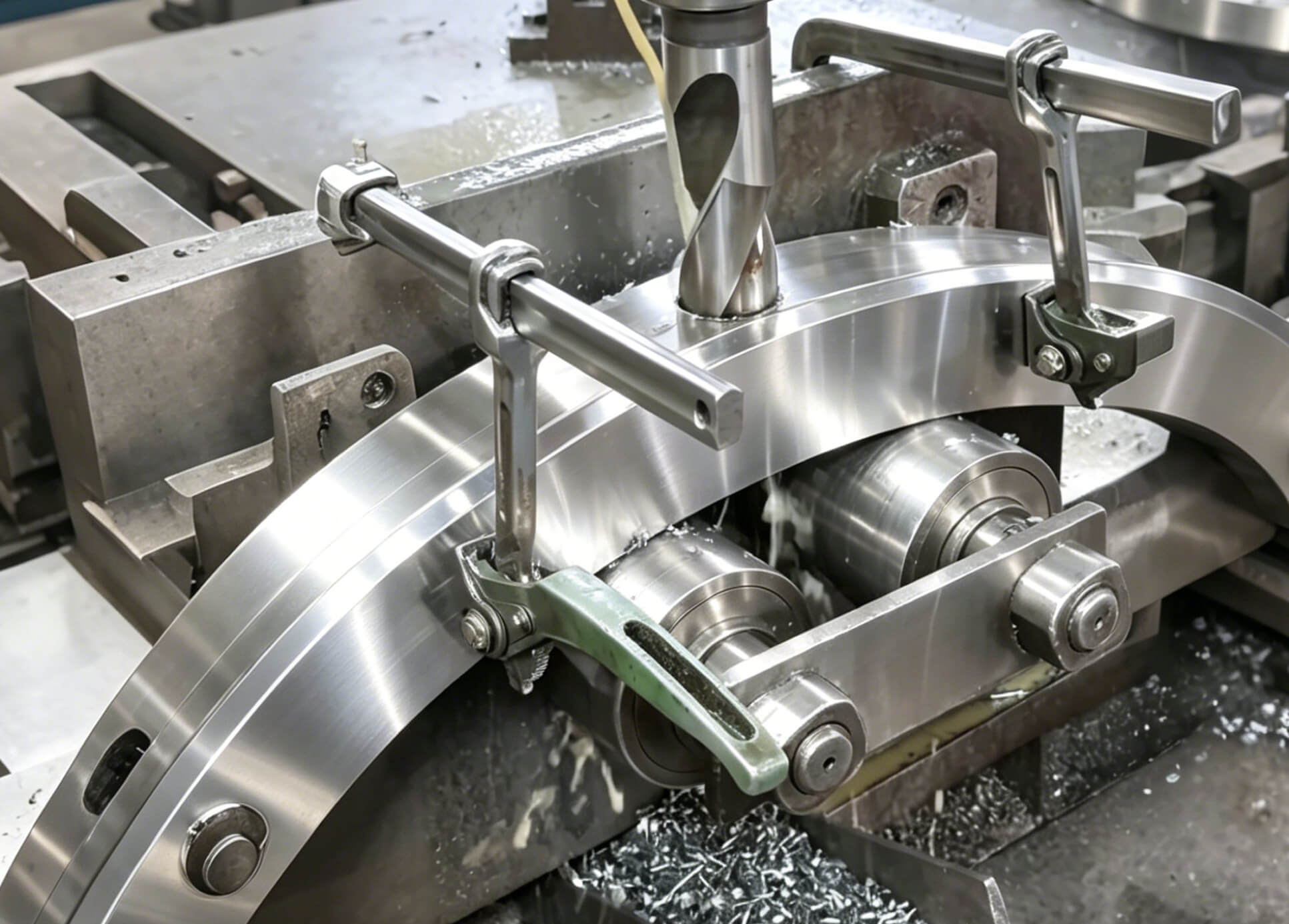

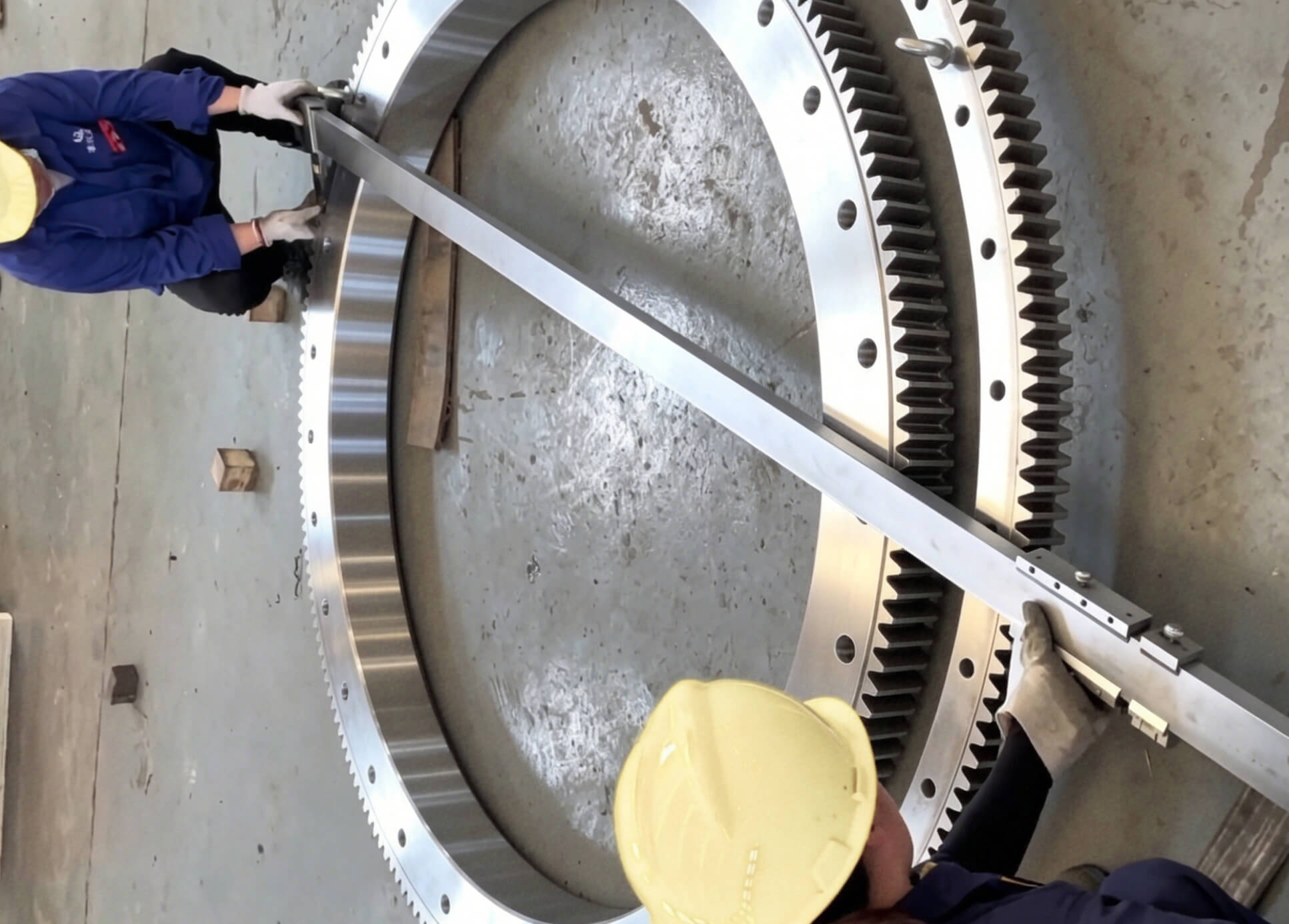

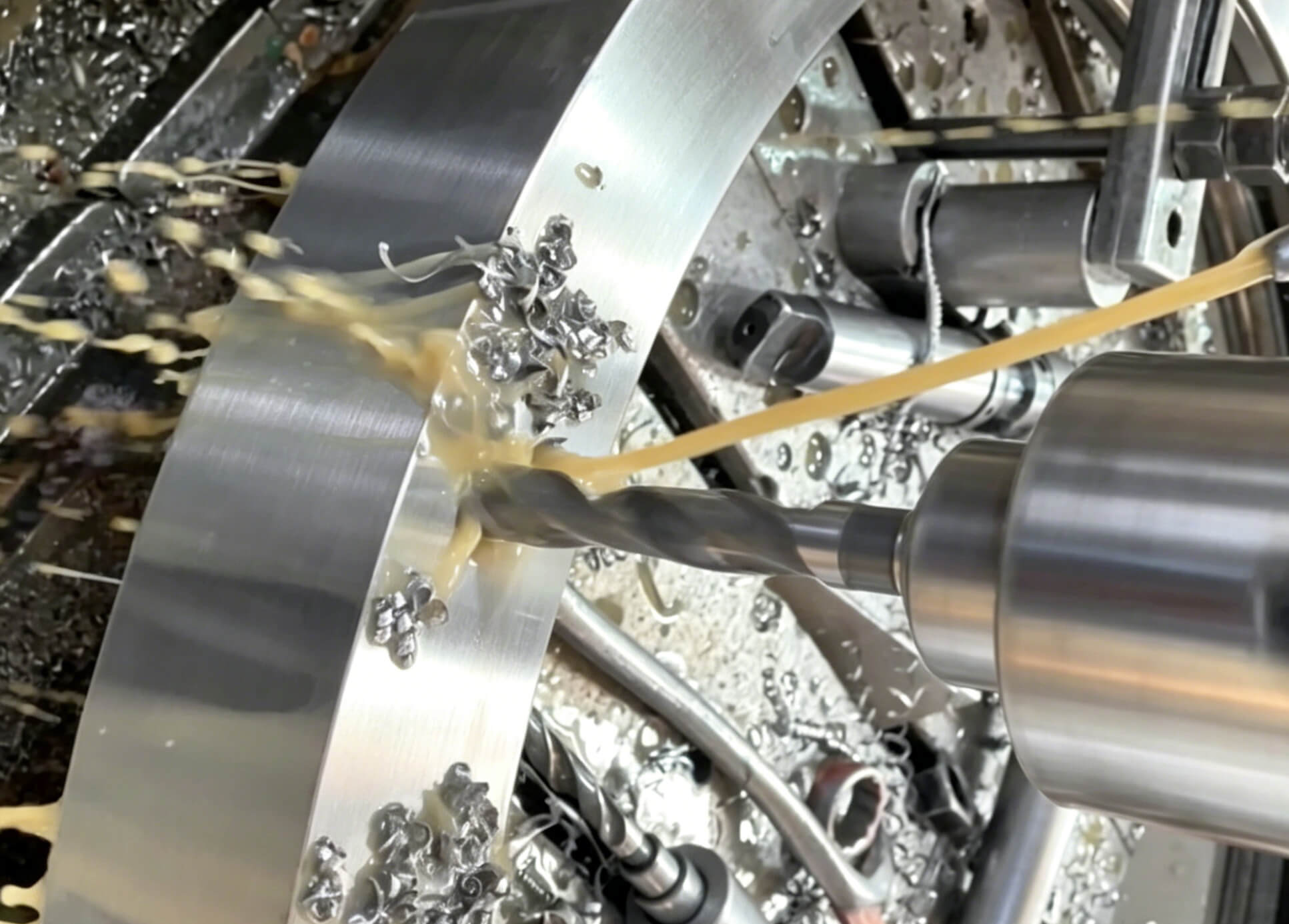

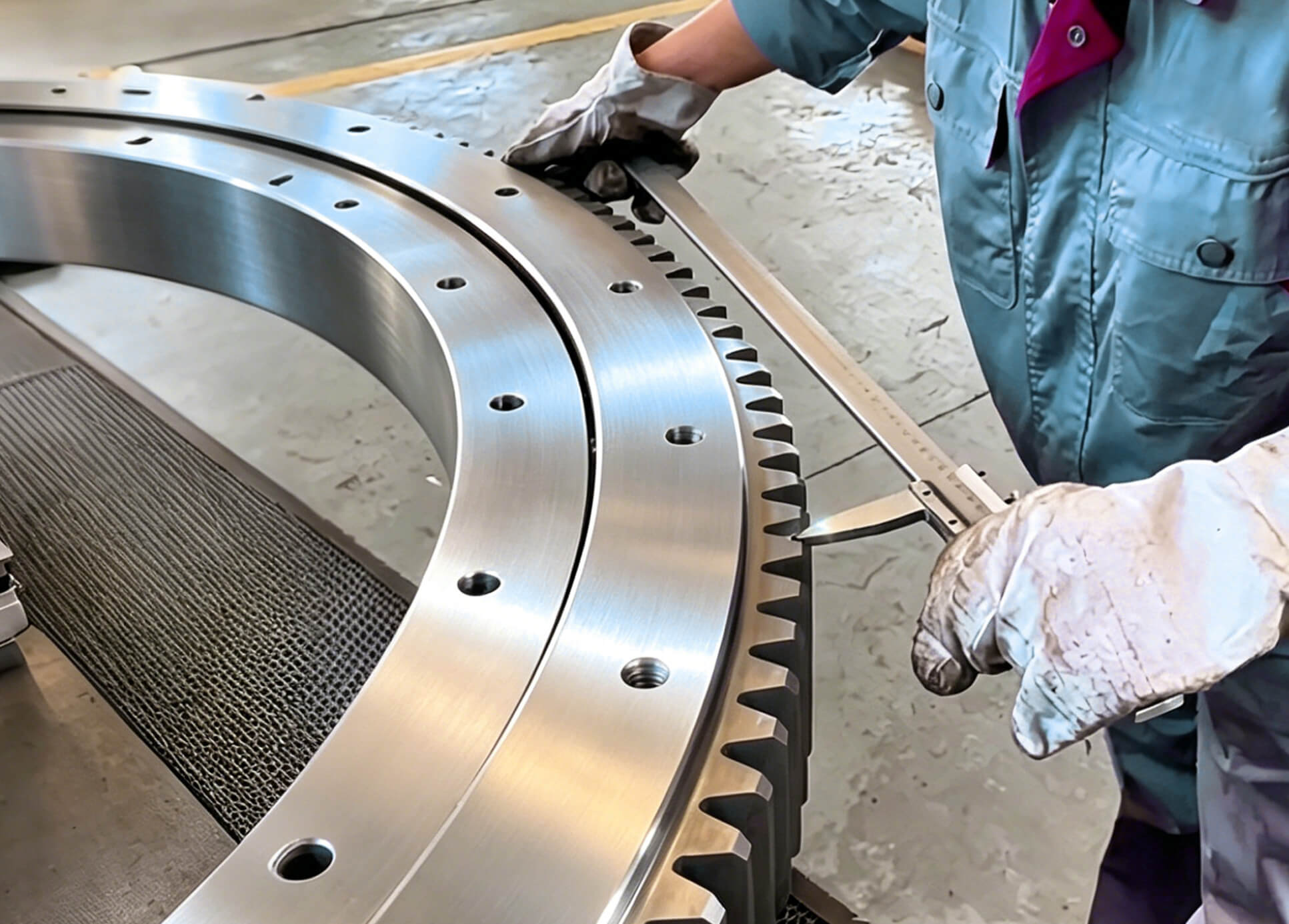

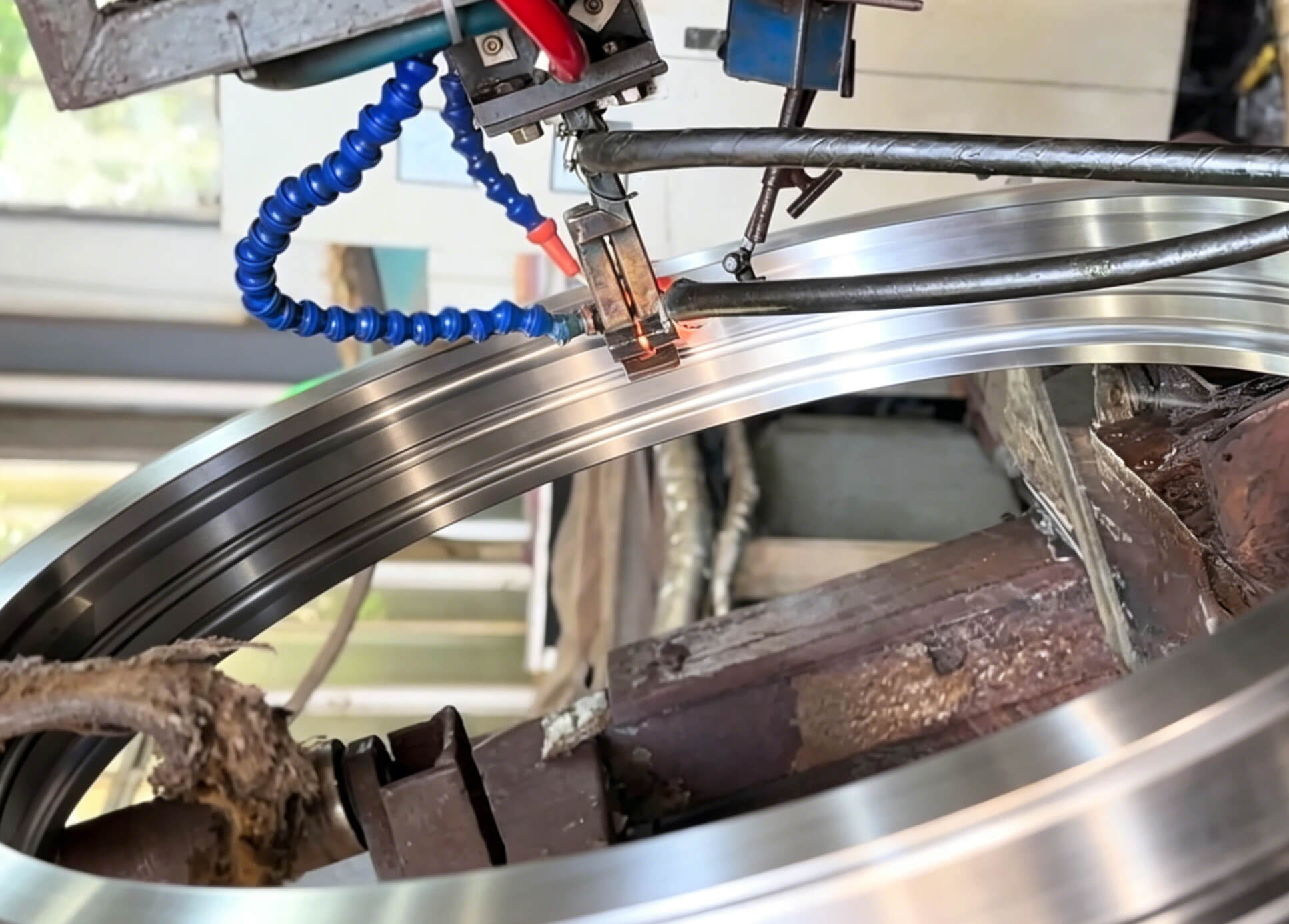

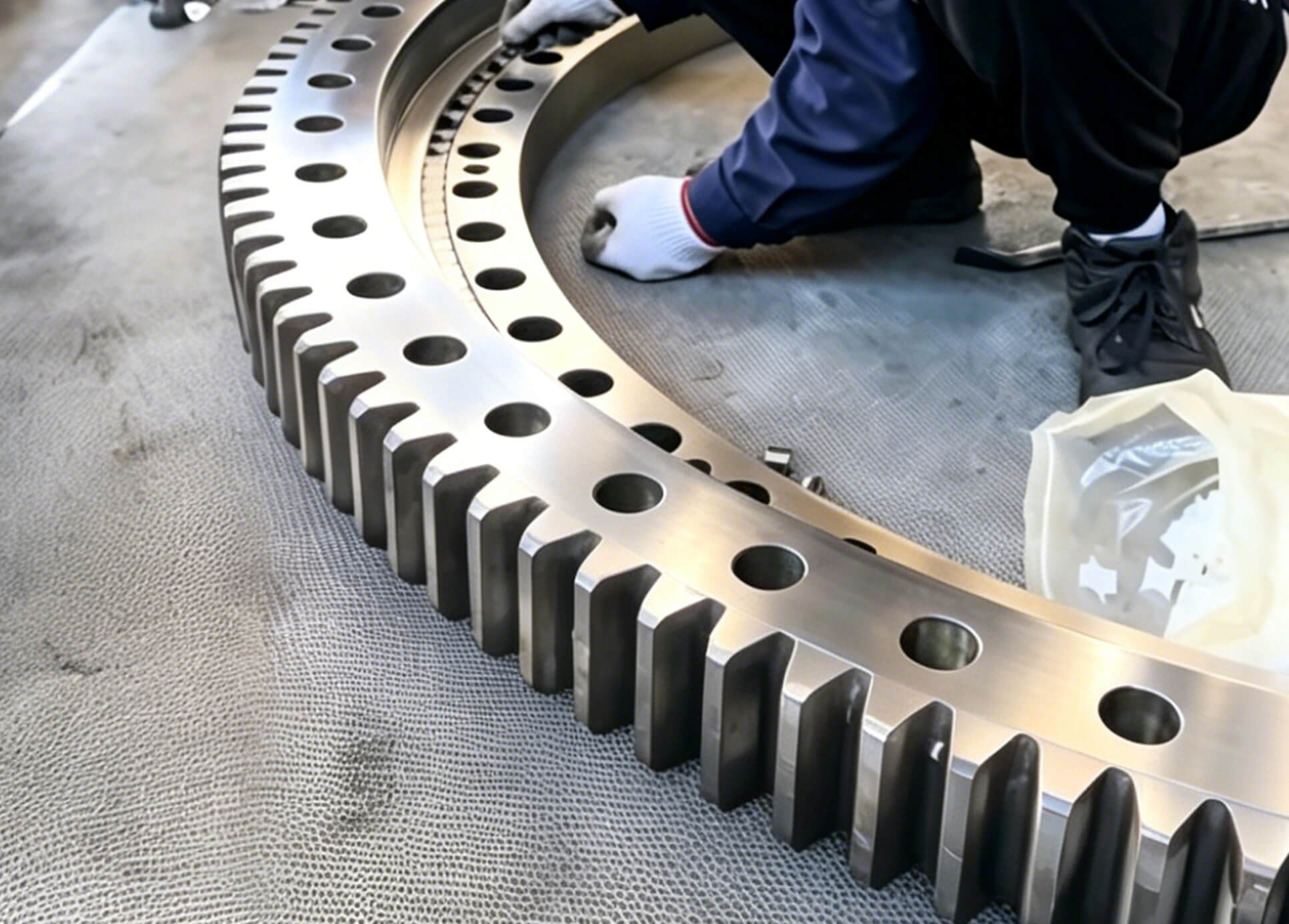

Robust 42CrMo steel – the inner raceway is integrally quenched to strengthen hardness and impact resistance. Precision CNC machining handles mounting and blocking holes, then we assemble rolling elements for smooth load bearing. Each finished bearing undergoes overall dimension and outer dimension measurement, with all indicators aligned to confidential drawings. Gear teeth are induction-hardened to DIN Class 7 for low-vibration transmission under dynamic loads.

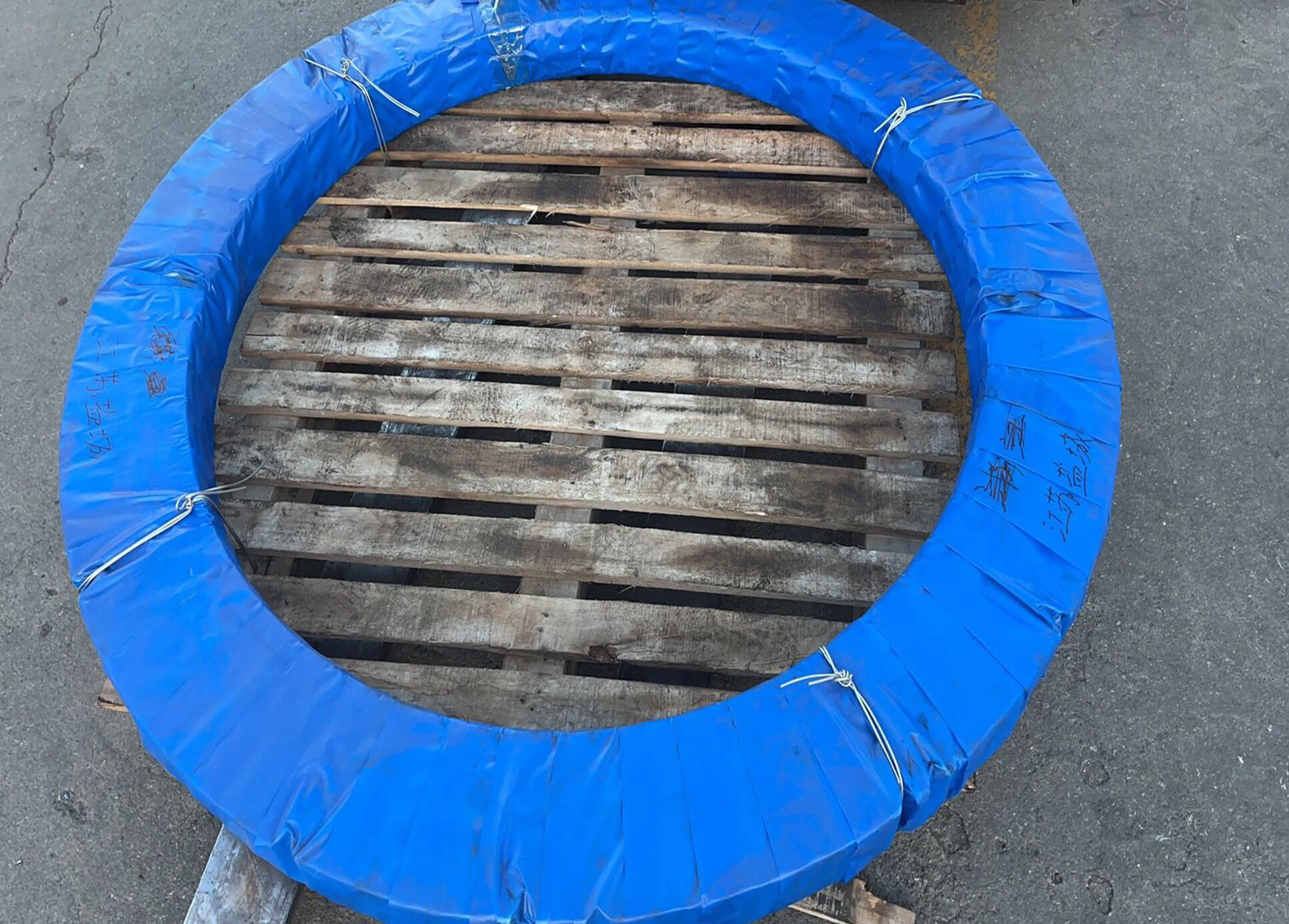

Reinforced multi-layer dust sealing and optimized grease channels block dry dust and adapt to extreme cold/heat. Our photos cover heat treatment, drilling, assembly inspection, packaging design, and final package display. Engineered for 2,000+ annual hours, this large external ring provides durable, secure rotation for Kazakhstan’s year-round Ferris wheel operations.

Technical Highlights

  • Custom triple-lip seal design to prevent dust and moisture ingress
  • Induction-hardened raceway: 55–58 HRC surface, 3.5 mm case depth
  • External gear profile: module m=6, Z=168, 20° pressure angle
  • Load capacity: 680 kN axial, 135 kNm overturning moment
  • Grease refill interval extended from 80h to 200h with polyurea-based high-temp grease
  • Pre-assembly ultrasonic inspection and 360° torque test before shipment
